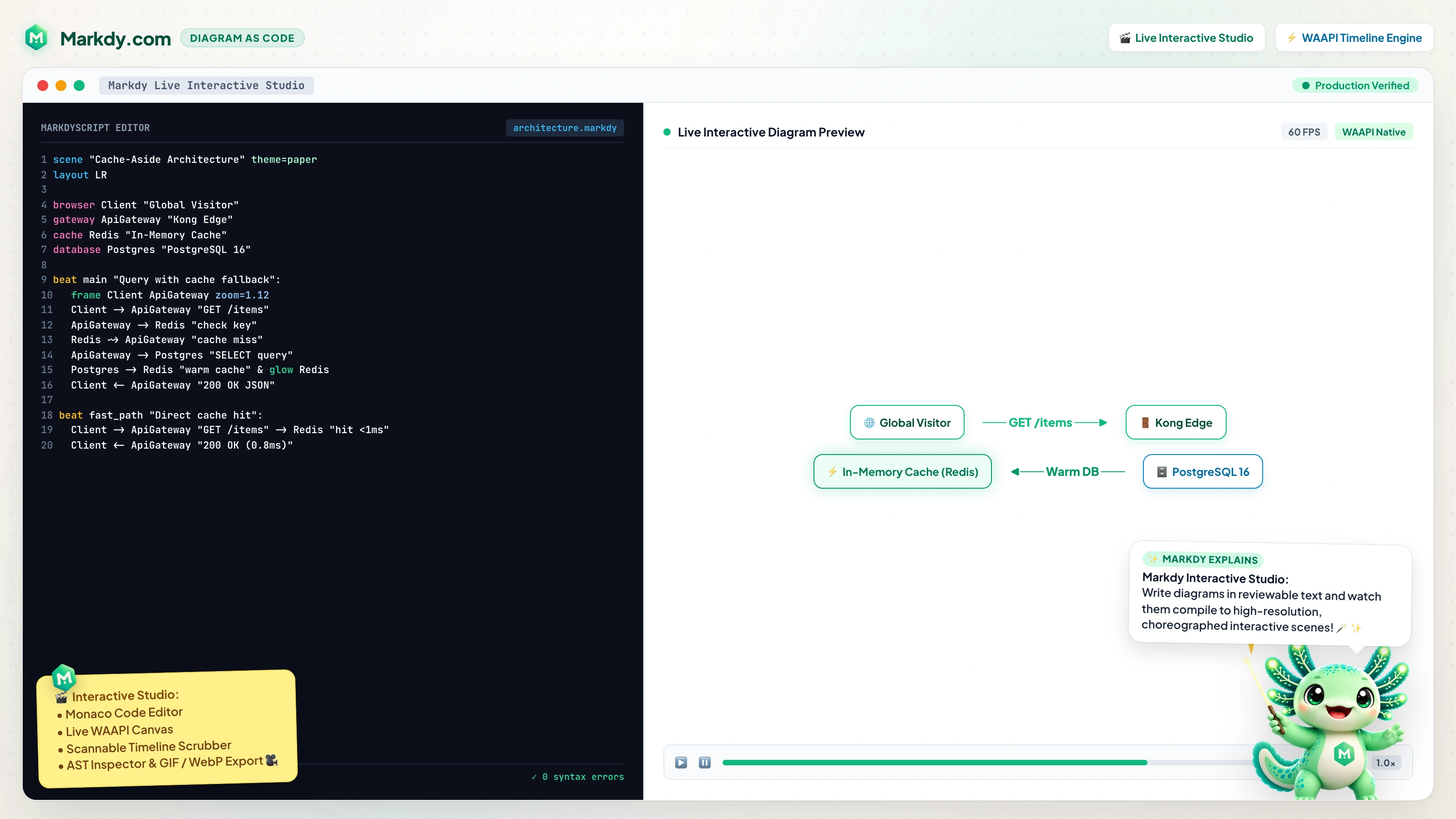

The Markdy playground is a browser workspace for learning and testinganimated architecture diagrams as code. It is built for the practical loop most developers need: start from a real scene, edit the text, watch the animation, fix warnings, and share a link.

Why a dedicated playground?

A small homepage demo is useful for a first impression, but serious authoring needs room. The dedicated playground gives the editor and preview the full width of the page, with an adjustable split so you can make the code pane wider while learning syntax or make the preview larger while checking motion and labels.

More space to read code. The MarkdyScript editor is one of the two main panes, not a sidebar.
More space to inspect motion. The animated preview can be expanded by dragging the split.
Examples stay nearby. Curated scenes live in a top strip so they do not steal editor or preview space.
Learning snippets are one click away. Insert common patterns for reveal beats, frame cues, request/response flows, and loop resets.

What you can do in the playground

The playground is not just a static text box. It is a full MarkdyScript feedback loop:

The curated examples include the focused flowchart, tree, state,sequence, and constellation modes, plus the flat editorial andnebula themes, so you can compare compositions before adding a scene to your own docs.

Task	How the playground helps
Learn the DSL	Use syntax highlighting, autocomplete, examples, and insertable snippets.
Test AI-generated diagrams	Paste generated MarkdyScript and inspect parse errors or reference warnings.
Review animation timing	Play, pause, restart, scrub the timeline, and jump directly to named beats.
Share a scene	Copy a shareable URL with the scene encoded in the hash.

A small scene to try

Paste this into the playground. It demonstrates nodes, a group, a labeled beat, a camera frame, request/response flow, and a compact viewer contract.

scene theme=paper
layout LR

browser Client
service API
database OrdersDb

group backend: API OrdersDb

beat reveal "Reveal the system":
  show $nodes stagger=60ms

beat request "Trace the request":
  frame backend zoom=1.18 dur=600ms
  Client -> API "POST /orders" -> OrdersDb "persist"
  Client <- API "201 Created"

beat reset "Return to overview":
  frame $nodes dur=600ms

player:
  playback:
    loop false
  controls:
    speed true
    speeds "0.5 1"
    fit true
    fullscreen true
    share true
  interaction:
    zoom true
    pan true
    double_click_to_reset true
  chrome:
    badge true
    progress boundary

Let the script own its player

The grouped player: block travels with the diagram through the playground, CLI, Astro, MDX, and the DOM renderer. Controls are explicit opt-ins. rate sets the initial playback multiplier;speeds supplies viewer choices, so the selector appears only when at least two distinct positive values are available. Controls stay on the footer's left; the linked Powered by Markdy badge stays right.

Best practices while experimenting

Keep labels short. Edge labels are easiest to read when they are specific but compact.
Use beat labels. A beat label becomes a caption that explains what the viewer is seeing.
Frame attention. Use frame groupName to guide the viewer through a complex system.
Reset before looping. Add frame $nodes near the end so the next loop starts from the whole diagram.
Fix diagnostics before sharing. Unknown node or group warnings usually mean a typo in a flow, group, or cue target.

How it fits with docs and local development

Use the playground for fast iteration. Once the scene feels right, copy the source into a .markdyfile and validate it with the CLI:

pnpm add -D @markdy/cli
pnpm markdy lint architecture.markdy
pnpm markdy fmt architecture.markdy --check
pnpm markdy render architecture.markdy --out architecture.html

For deeper syntax details, open the docs or theAI agent guide. For comparisons, read Markdy vs Mermaid andDiagram as Code: The Complete Guide.
